Apart from MCPCB, if your application requires high pressure, high insulation, high frequency, high temperature, and high reliability in small electronic products, Ceramic PCBs are an excellent choice.

Why do Ceramic PCBs perform so well? Let's look at their basic structure to understand.

  • Base Material: 96% or 98% Alumina (Al2O3), Aluminum Nitride (ALN), or Beryllium Oxide (BeO)
  • Conductive Material: For thin and thick film technology, the conductors are typically silver palladium (AgPd) or gold palladium (AuPd). For Direct Copper Bonded (DCB) technology, copper is used.
  • Application Temperature Range: -55°C to 850°C
  • Thermal Conductivity: 24W-28W/m-K for Al2O3, 150W-240W/m-K for ALN, and 220W-250W/m-K for BeO
  • Maximum Compression Strength: Greater than 7,000 N/cm²
  • Breakdown Voltage: 15/20/28 KV/mm for thicknesses of 0.25mm, 0.63mm, and 1.0mm respectively
  • Thermal Expansion Coefficient: 7.4 ppm/K (within the range of 50°C to 200°C)
Application of Ceramic PCB
  • High-accuracy clock oscillators, voltage-controlled oscillators (VCXO), temperature-compensated crystal oscillators (TCXOs), and oven-controlled crystal oscillators (OCXOs)
  • Semiconductor cooler
  • Electric power electronic control modules
  • High insulation and high-pressure devices
  • High-temperature applications (up to 800°C)
  • High power LEDs
  • High Power semiconductor modules
  • Solid-state relay (SSR)
  • DC-DC module power sources
  • Electric power transmitter modules
  • Solar-panel arrays

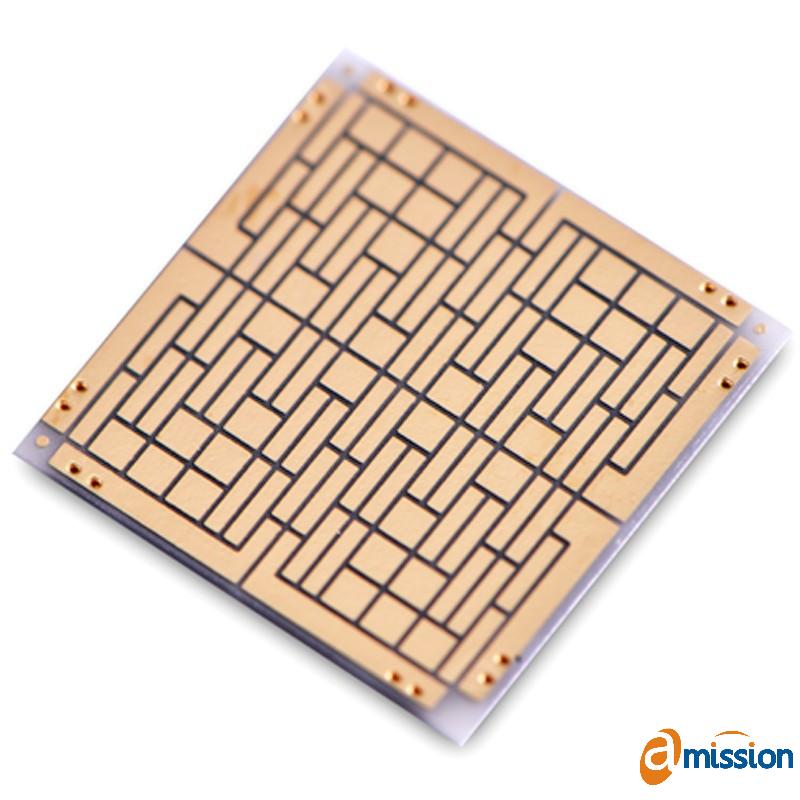

Ceramic PCB

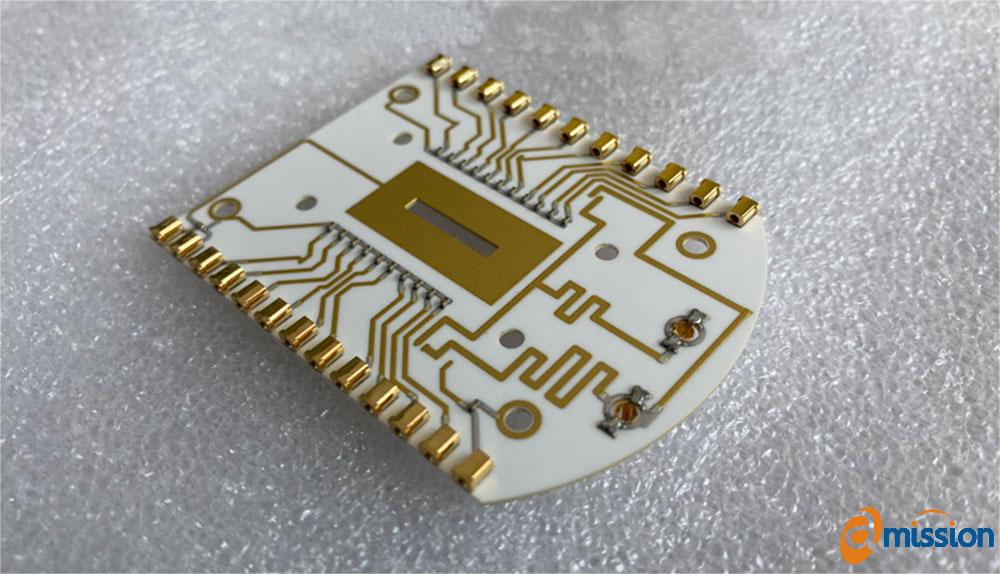

Ceramic PCB
Ceramic PCB Technics Capacity
No.
Item
Description
DataSheet
1
Max Layer Count Thick Film: 10L; DCB: 2L
2
Min Board Thickness
mm
Thick Film: 0.25mm
DCB: 0.30mm
mm
Thick Film: 0.28mm
DCB: 0.40mm
mm
0.34mm
mm
0.46mm
mm
0.81mm
mm
1.50mm
3
Max Board Thickness
mm
Thick Film: 1.5mm
DCB: 1L: 1.3mm;
2L 1.6mm
4
Max Board Dimension
mm
"Thick Film: 200*200mm
DCB: 138*178mm
5
Max Conductor Thickness Thick Film: 13um
DCB: 8.6OZ
6
Min Conductor Thickness Thick Film: 10um
DCB:3.9 OZ
7
Min Trace Width/Space
mil
Thick Film: 6/8mil
DCB: 12/12mil
8
Min Hole Diameter
mm
0.1mm
9
Min Punch Hole Dia N/M
10
Min Hole Spacing
mm
NPTH: 0.30mm
PTH: 0.5mm
11
Max Aspect Ratio
rate
8:1
12
Min Solder PAD Dia
mm
0.25mm
13
Min PAD Ring(Single)
mil
3mil
6mil
8mil
14
PTH Wall Thickness Thick Film: 10um
DCB: Not Available
15
PTH Dia Tolerance
mil
± 4 mil
16
NPTH Dia Tolerance
mil
± 2 mil
17
Hole Position
mil
±4 mil
18
Outline Tolerance
mm
Laser: +0.2/0.05mm
mm
Die Punch: +0.25/0.20mm
19
Min Soldermask Bridge
mil
2 mil
20
Min BAG PAD Margin
mil
12 mil
21
Impedance Controlled N/M
22
Thermal Conductivity
(W/m.K, or W/m.C)
Al2O3: >= 24 W/C-K
AIN: >=170 W/C-K
23
Dielectric Strength >15 KV/mm
24
Wrap & Twist ≤ 3%
25
Flammability 94V-0
26
Thermal Stress 3 x 10 Sec @ 280 ℃
27
Surface Treatment Thick Film: AgPd, AuPd, Mn/Ni
DCB: Ni plating, ENIG
Please contact us today for more information about Ceramic circuit board (Ceramic PCB).
