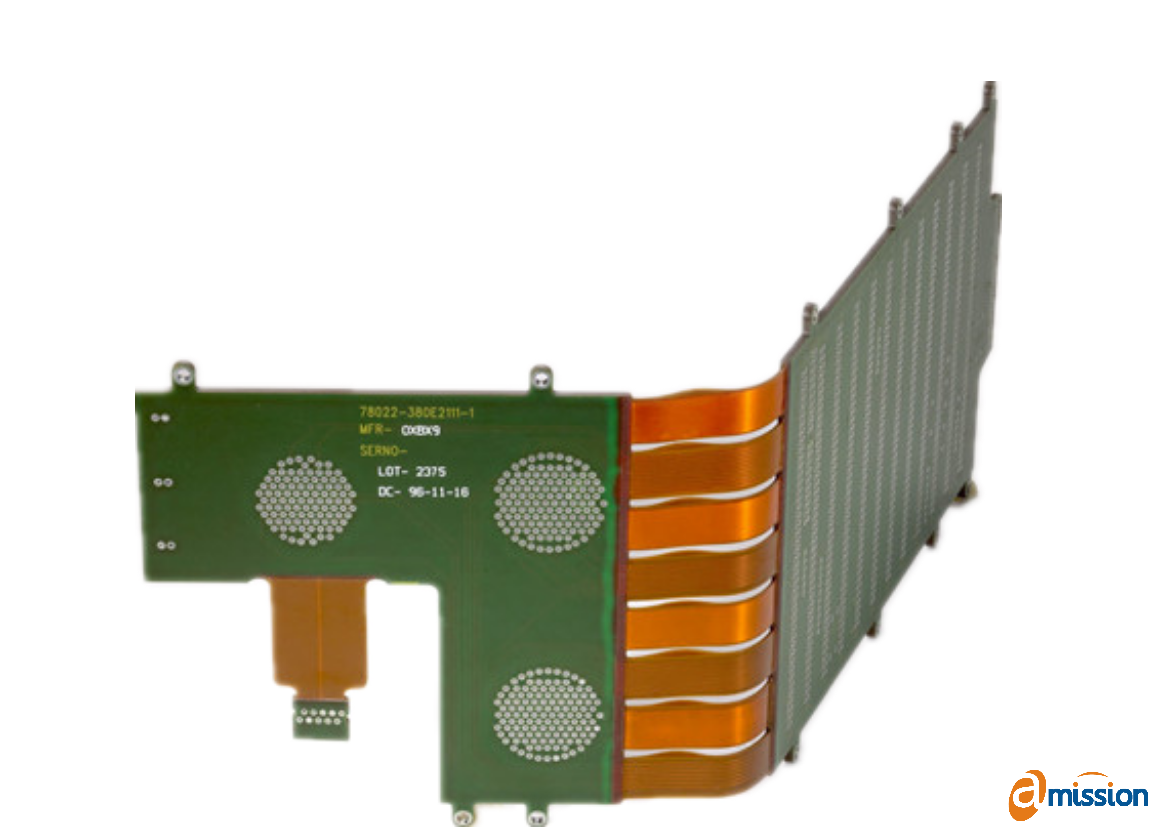

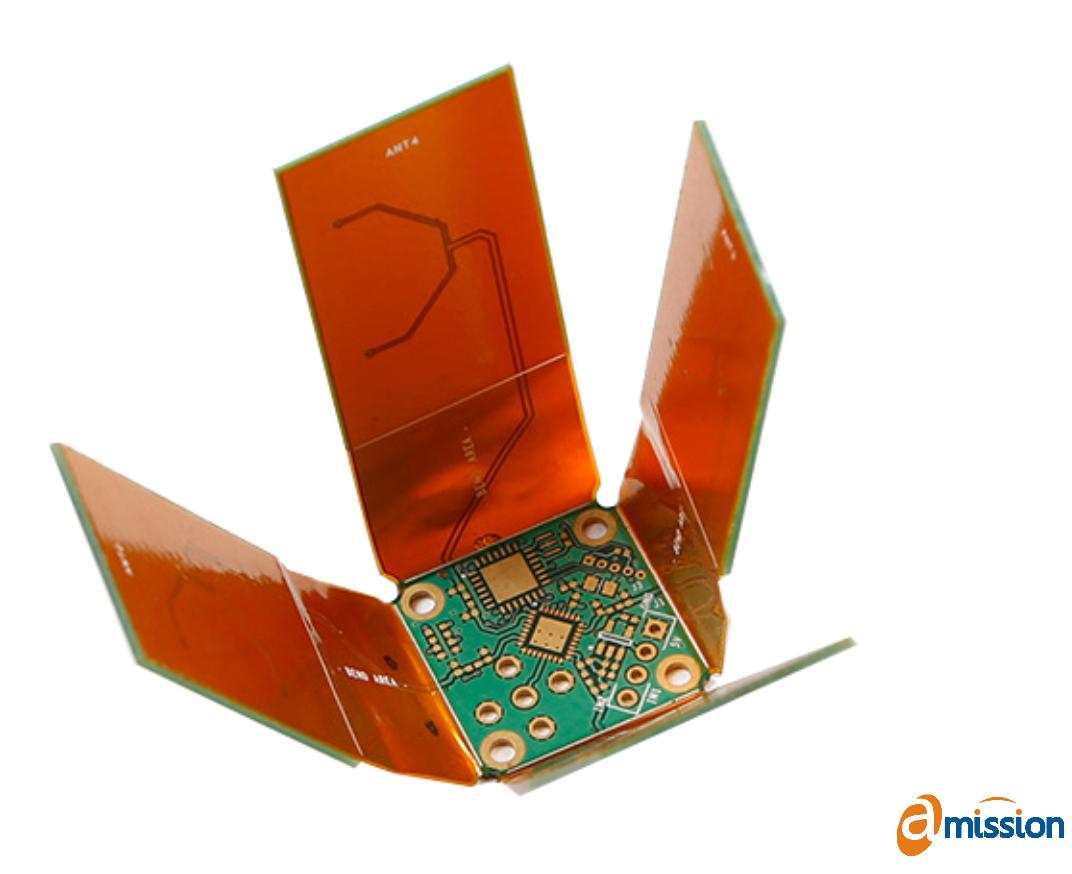

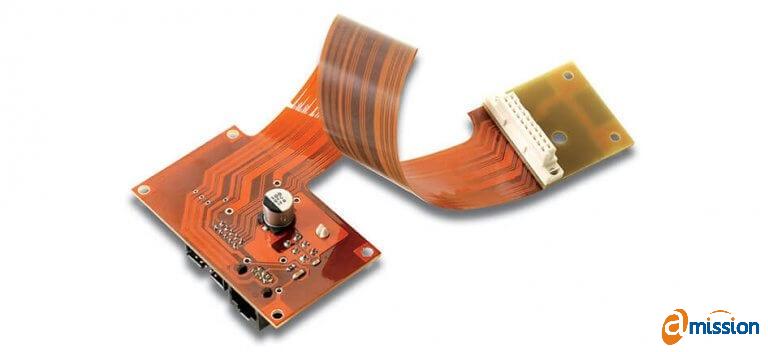

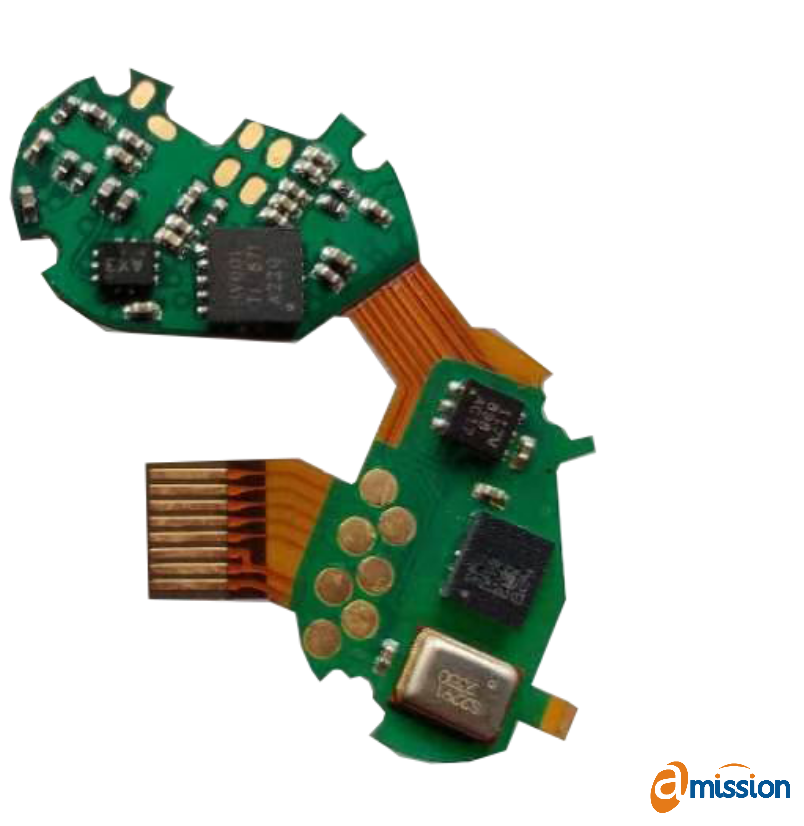

No.
|
Item
|
Description
|
DataSheet
|
|
1
|
FPC Main material |
Brand
|
Taiflex、Graceth、SY |
|
2
|
PCB Material |
Brand
|
SY、ITEQ、KB |
|
3
|
Texture |
Texture Brand
|
PI、 PET |
|
4
|
Cover Film |
Brand
|
Taiflex、Graceth、SY |
|
5
|
Max Layers |
LAYER
|
1-24layers（sample）、
1-12layers(manufacture） |
|
6
|
Finish Board thickness |
mm
|
0.25-6.0mm(samplel）
Rigid - Flex PCB 0.25-6.0mm |
|
7
|
Min Pattern Width / Spacing |
mm
|
0.05mm/0.05mm |
|
8
|
Max finish board size |
mm
|
230*450mm |
|
9
|
Finish Board thickness tolerance |
mm
|
±50.05mm |
|
10
|
PP Thickness |
um
|
12.5um 、 25um 、 50um |
|
11
|
Copper thickness |
um
|
12um 、 18um 、 36um 、 70um |
|
12
|
Stiffener materail |
Variety
|
FR4/PI/PET/SUS/PSA |
|
13
|
Surface treatment |
Variety
|
ENIG、Immersion tin、OSP、
immersion silver、plating gold
|
|
14
|
Min hole size |
mm
|
Mechanical Hole ：0.15mm 、Laser Hole0.1mm |
|
15
|
Hole tolerance |
mm
|
NPTH:±0.05mm 、PTH:±0.075mm |
|
16
|
Cover film color |
Variety
|
Yellow 、 Black |
|
17
|
PI thickness |
mil
|
0.5mil、0.7mil、0.8mil、1mil、2mil |
|
18
|
Max number of layers of FPCB |
|
1-8layers |
|
19
|
Min finished size |
mm
|
5mm*8mm |
|
20
|
Min pad |
mm
|
inner layer（5mil）、outer layer（4mil） |
|
21
|
Stiffener min size |
mm
|
4mm×5mm |
|
22
|
Stiffener max size |
mm
|
32mm×32mm |
|
23
|
Stifferner alignment accuracy |
mm
|
±0.075mm |
|
24
|
Cover minimum openning size |
mm
|
0.6×0.6mm(steeling tooling)、
0.5×0.5mm(Precision tooling) |
|
25
|
Minimum openning spacing for covering film |
mm
|
0.5mm(Precision tooling)、0.2mm（Laser Routing）、 0.15mm(Normal
drilling)
|
|
26
|
Coating film overflow amount（unilateral） |
mm
|
Normal0.08-0.12mm 、 Limitation0.03mm |
|
27
|
Min diameter of gold finger semicircle hole |
mm
|
0.25mm，Normal value0.3mm |
|
28
|
Rigid-Flex PCB：Peel-off strength |
N
|
1.4N |
|
29
|
Rigid-Flex PCB：Planeness |
um
|
Less than 15um before baking; less than 30um after baking |
|
30
|
Rigid-Flex PCB：thermal shock |
℃
|
288℃（3 times within 10 seconds） |
|
31
|
Rigid-Flex PCB：W/B gold wire pull |
g
|
> 6g |
|
32
|
Rigid-Flex PCB：min.board thickness |
mm
|
FPCB 0.1mm、4Layers 0.3mm、
6Layers 0.5mm、8Layers 0.6mm、
10Layers0.8mm
|
